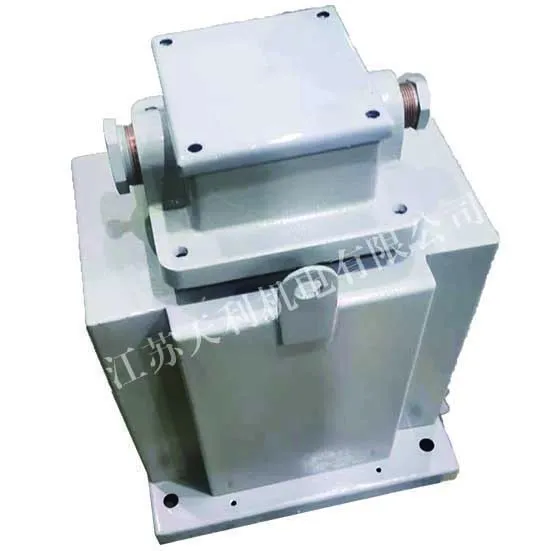

Marine waterproof transformer uses special core material and winding form, the transformer body is placed in a sealed shell, integral epoxy casting, strong mechanical performance.
Product Features
- Integral epoxy casting, excellent mechanical properties, strong short-circuit resistance;
- Protection class up to IP56, excellent waterproof performance;
- Moisture-proof, corrosion-resistant salt spray, especially suitable for working in harsh environments;
- Small size and light weight.
Technical Parameters
|
Rated capacity (kVA) |
Rated frequency |
Primary voltage (V) |
Secondary voltage (V) |
Connection group |
No-load current (%) |
No-load loss (W) |
Load loss: 110℃ (W) |
Short-circuit impedance (%) |
|
0.5 |
50Hz or 60Hz |
0.23 0.39, 0.4, 0.45, 0.69 Or other |
0.025, 0.115, 0.12, 0.23, 0.39, 0.4 Or other |
Yy0 Dd0 Yd11 Dy11 |
18 |
15 |
25 |
3.5 |
|
1 |
16 |
20 |
45 |
|||||
|
2 |
14 |
30 |
65 |
3.0 |
||||
|
3 |
12 |
40 |
75 |
|||||
|
5 |
10 |
60 |
125 |
|||||
|
7.5 |
9 |
90 |
190 |
2.5 |
||||
|
10 |
8 |
95 |
245 |
|||||
|
15 |
8 |
115 |
310 |
|||||
|
20 |
6 |
145 |
350 |
2.2 |
||||
|
25 |
6 |
170 |
415 |
|||||
|
30 |
5 |
250 |
510 |
|||||
|
40 |
5 |
275 |
680 |
2.0 |
||||
|
45 |
4 |
280 |
695 |
|||||
|
50 |
4 |
290 |
710 |
|||||
|
63 |
4 |
295 |
815 |
2.5 |
||||
|
75 |
3 |
310 |
975 |
|||||
|
100 |
3 |
580 |
1115 |
3.0 |
Advantages
Ultimate protection and weather resistance
With IP56-level fully sealed protection combined with triple anti-corrosion technology of titanium alloy/sacrificial anode/special coating, it achieves long-term salt spray corrosion resistance underwater and stable operation in a wide temperature range of -30 ° C to +40 ° C, ensuring the reliability of the ship's power system in extreme Marine environments and over 20 years of maintenance-free life.
Safety, reliability and structural innovation
The IP56-level protection is achieved through epoxy resin casting and titanium alloy sealing. Combined with the three-dimensional wound core short-circuit resistance structure (cold-rolled silicon steel sheet stacking) and electromagnetic shielding design, it ensures insulation stability in salt spray and water immersion environments (power supply is restored within 2 hours after 48 hours of water immersion). Meanwhile, the embedded optical fiber sensor + electromagnetic damper can counteract 90% of the vibration. The amplitude is reduced to 0.02mm under 12-level wind and waves.
High energy efficiency and intelligent operation and maintenance
With low-loss three-dimensional core and bionic porous heat dissipation + phase change material, the no-load loss is 20%-30% lower than the traditional oil-immersed type, and the noise is < 43dB(A); Combined with quantum machine learning algorithms (trained with 10 billion fault samples, false alarm rate < 0.001%) to warn insulation deterioration 180 days in advance, the metal bellows oil storage tank is designed to be maintenance-free, reducing operation and maintenance costs throughout its life cycle by 30%.
